Python Iterate Through Connected Components In Grayscale Image

September 30, 2022 Post a Comment

I have a gray scale image with values between 0 (black) and white (255). I have a target matrix of the same size as the gray scale image. I need to start at a random pixel in the g

Solution 1:

You can use networkx:

from itertools import product, repeat
import numpy as np
import networkx as nx

arr = np.array(
[[255,255,255,255,255,255,255],
 [255,255, 0 ,10 ,255,255, 1 ],
 [255,30 ,255,255,50 ,255, 9 ],
 [51 ,20 ,255,255, 9 ,255,240],
 [255,255,80 ,50 ,170,255, 20],
 [255,255,255,255,255,255, 0 ],
 [255,255,255,255,255,255, 69]])

# generate edges
shift = list(product(*repeat([-1, 0, 1], 2)))
x_max, y_max = arr.shape
edges = []

for x, y in np.ndindex(arr.shape):
    for x_delta, y_delta in shift:
        x_neighb = x + x_delta
        y_neighb = y + y_delta
        if (0 <= x_neighb < x_max) and (0 <= y_neighb < y_max):
            edge = (x, y), (x_neighb, y_neighb)
            edges.append(edge)

# build graph
G = nx.from_edgelist(edges)

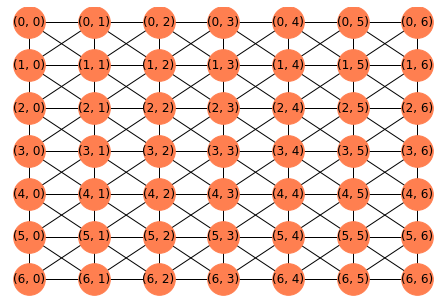

# draw graph
pos = {(x, y): (y, x_max-x) for x, y in G.nodes()}
nx.draw(G, with_labels=True, pos=pos, node_color='coral', node_size=1000)

# draw graph with numbers
labels = dict(np.ndenumerate(arr))
node_color = ['coral' if labels[n] == 255 else 'lightgrey' for n in G.nodes()]
nx.draw(G, with_labels=True, pos=pos, labels=labels, node_color=node_color, node_size=1000)

# build subgraph
select = np.argwhere(arr < 255)
G1 = G.subgraph(map(tuple, select))

# draw subgraph
pos = {(x, y): (y, x_max-x) for x, y in G1.nodes()}
labels1 = {n:labels[n] for n in G1.nodes()}
nx.draw(G1, with_labels=True, pos=pos, labels=labels1, node_color='lightgrey', node_size=1000)

# find connected components and DFS trees
for i in nx.connected_components(G1):
    source = next(iter(i))
    idx = nx.dfs_tree(G1, source=source)
    print(arr[tuple(np.array(idx).T)])

Output:

[  0  10  50   9  50  80  20  30  51 170]
[  9   1 240  20   0  69]

Solution 2:

So after so much researches for suitable implementation of connected components, I came up with my solution. In order to reach the best I can do in terms of performance, I relied on these rules:

Not to use networkx because it's slow according to this benchmark
Use vectorized actions as much as possible because Python based iterations are slow according to this answer.

I'm implementing an algorithm of connected components of image here only because I believe this is an essential part of this question.

Algorithm of connected components of image

import numpy as np
import numexpr as ne
import pandas as pd
import igraph

def get_coords(arr):
    x, y = np.indices(arr.shape)
    mask = arr != 255
    return  np.array([x[mask], y[mask]]).T

def compare(r1, r2):
    #assuming r1 is a sorted array, returns:
    # 1) locations of r2 items in r1
    # 2) mask array of these locations
    idx = np.searchsorted(r1, r2)
    idx[idx == len(r1)] = 0
    mask = r1[idx] == r2
    return idx, mask

def get_reduction(coords, s):
    d = {'s': s, 'c0': coords[:,0], 'c1': coords[:,1]}
    return ne.evaluate('c0*s+c1', d)

def get_bounds(coords, increment):
    return np.max(coords[1]) + 1 + increment

def get_shift_intersections(coords, shifts):
    # instance that consists of neighbours found for each node [[0,1,2],...]
    s = get_bounds(coords, 10)
    rdim = get_reduction(coords, s)
    shift_mask, shift_idx = [], []
    for sh in shifts:
        sh_rdim = get_reduction(coords + sh, s)
        sh_idx, sh_mask = compare(rdim, sh_rdim)
        shift_idx.append(sh_idx)
        shift_mask.append(sh_mask)
    return np.array(shift_idx).T, np.array(shift_mask).T,

def connected_components(coords, shifts):
    shift_idx, shift_mask = get_shift_intersections(coords, shifts)
    x, y = np.indices((len(shift_idx), len(shift_idx[0])))
    vertices = np.arange(len(coords))
    edges = np.array([x[shift_mask], shift_idx[shift_mask]]).T

    graph = igraph.Graph()
    graph.add_vertices(vertices)
    graph.add_edges(edges)
    graph_tags = graph.clusters().membership
    values = pd.DataFrame(graph_tags).groupby([0]).indices
    return values

coords = get_coords(arr)
shifts=((0,1),(1,0),(1,1),(-1,1))
comps = connected_components(coords, shifts=shifts)

for c in comps:
    print(coords[comps[c]].tolist())

Outcome

[[1, 2], [1, 3], [2, 1], [2, 4], [3, 0], [3, 1], [3, 4], [4, 2], [4, 3], [4, 4]]
[[1, 6], [2, 6], [3, 6], [4, 6], [5, 6], [6, 6]]

Explanation

Algorithm consists of these steps:

We need to convert image to coordinates of non-white cells. It can be done using function:
```
def get_coords(arr):
    x, y = np.indices(arr.shape)
    mask = arr != 255
    return np.array([y[mask], x[mask]]).T
```
I'll name an outputting array by X for clarity. Here is an output of this array, visually:
Next, we need to consider all the cells of each shift that intersects with X:

In order to do that, we should solve a problem of intersections I posted few days before. I found it quite difficult to do using multidimensional numpy arrays. Thanks to Divakar, he proposes a nice way of dimensionality reduction using numexpr package which fastens operations even more than numpy. I implement it here in this function:
```
def get_reduction(coords, s):
    d = {'s': s, 'c0': coords[:,0], 'c1': coords[:,1]}
    return ne.evaluate('c0*s+c1', d)
```
In order to make it working, we should set a bound s which can be calculated automatically using a function
```
def get_bounds(coords, increment):
    return np.max(coords[1]) + 1 + increment
```
or inputted manually. Since algorithm requires increasing coordinates, pairs of coordinates might be out of bounds, therefore I have used a slight increment here. Finally, as a solution to my post I mentioned here, indexes of coordinates of X (reduced to 1D), that intersects with any other array of coordinates Y (also reduced to 1D) can be accessed via function
```
def compare(r1, r2):
    # assuming r1 is a sorted array, returns:
    # 1) locations of r2 items in r1
    # 2) mask array of these locations
    idx = np.searchsorted(r1, r2)
    idx[idx == len(r1)] = 0
    mask = r1[idx] == r2
    return idx, mask
```
Plugging all the corresponding arrays of shifts. As we can see, abovementioned function outputs two variables: an array of index locations in the main set X and its mask array. A proper indexes can be found using idx[mask] and since this procedure is being applied for each shift, I implemented get_shift_intersections(coords, shifts) method for this case.
Final: constructing nodes & edges and taking output from igraph. The point here is that igraph performs well only with nodes that are consecutive integers starting from 0. That's why my script was designed to use mask-based access to item locations in X. I'll explain briefly how did I use igraph here:
- I have calculated coordinate pairs:
```
  [[1, 2], [1, 3], [1, 6], [2, 1], [2, 4], [2, 6], [3, 0], [3, 1], [3, 4], [3, 6], [4, 2], [4, 3], [4, 4], [4, 6], [5, 6], [6, 6]]
```
- Then I assigned integers for them:
```
  [ 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15]
```
- My edges looks like this:
```
  [[0, 1], [1, 4], [2, 5], [3, 7], [3, 0], [4, 8], [5, 9], [6, 7], [6, 3], [7, 10], [8, 12], [9, 13], [10, 11], [11, 12], [11, 8], [13, 14], [14, 15]]
```
- Output of graph.clusters().membership looks like this:
```
  [0, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 1]
```
- And finally, I have used groupby method of Pandas to find indexes of separate groups (I use Pandas here because I found it to be the most efficient way of grouping in Python)

Notes

Download of igraph is not straightforward, you might need to install it from unofficial binaries.
